Floorplan - 2005 Jayco Jay Feather LGT 19 W
+1-
20ft long
-
3,400 lbs
-
Sleeps 4
-
Front LivingRear Bedroom

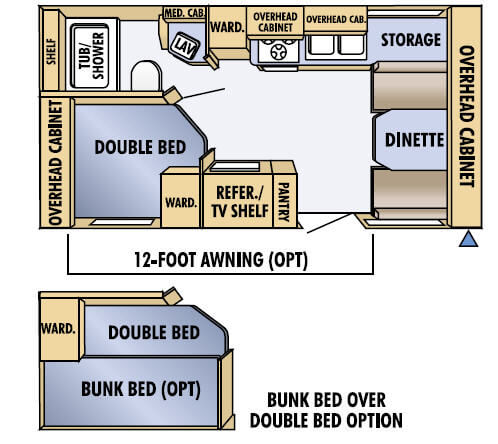

19H Floorplan
Specifications
| Sleeps | 4 | Length | 20 ft 4 in |
| Ext Width | 8 ft | Ext Height | 8 ft 6 in |
| Int Height | 6 ft 6 in | Exterior Color | WHITE |
| Hitch Weight | 495 lbs | GVWR | 4400 lbs |
| Dry Weight | 3400 lbs | Cargo Capacity | 1000 lbs |
| Fresh Water Capacity | 31 gals | Grey Water Capacity | 31 gals |
| Black Water Capacity | 23 gals | Tire Size | ST185/80B13C |
| Furnace BTU | 25000 btu | VIN | 1UJBJ02J951JH0446 |
Description
Rear Bath w/Tub Shower, Lav., & Medicine Cabinet, Wardrobe, Rear Double Bed w/Wardrobe, Opt. Bunk Over Bed, Refrigerator/TV Shelf, Pantry, 3 Burner Range, Double Kitchen Sink, Storage, Booth Dinette, Overhead Cabinets Throughout, and Much More!
Features
Standard Features (2005)
Construction
- 78" ceiling height
- Bead-foam insulation (R-7 in sidewalls, roof and floor)
- Cabinetry crafted with screwed stile construction
- Electric powered slideout
- Enclosed underbelly
- Filon fiberglass sidewall exteriors
- Weld-free modular HSLA steel frame with E-Coat protection
- PolyFlex one-piece covering for underbelly
- One-piece seamless, TPO roof
- Tubular-aluminum sidewall framework
- TuffShell vacuum-bond laminated roof, floor, and sidewalls
- Unitized 1-1/2 laminated construction floor
Heat, Power and Water
- 12V demand water pump
- 12V electrical system with deluxe 110V 45-amp. power converter
- 30-amp. power cord
- Double 20 lb. LP gas bottles with auto-regulator (19W model)
- Double 30 lb. LP gas bottles with auto-regulator
- Auto-ignition furnace with wall thermostat
- Gravity fill for water
- Rotocast fresh water holding tanks
- Hook-up for city water
- Monitor panel for all systems
- Water heater bypass system
Exterior
- 10" electric brakes
- 110V G.F.C.I. protected exterior receptacle
- 13" radial tires (19W only)
- 14" radial tires (except on 19W)
- 2-5/16" hitch coupler (select models)
- ABS fender skirts
- Lockable radius-cornered baggage doors with heavy-duty grab handle
- Bumper is made of molded ABS
- TorFlex independent torsion-axle rubber ride suspension system
- Fiberglass radius cornered entrance door and screen door
- E-Z Lube Axles
- Front window with flush-mounted stone guard
- HDPE wheel wells
- Heavy-duty and retractable entrance step
- Painted bottom radius skirting
- Pass-through storage compartment
- Patio light with inside switch
- Molded rain guttering with drip spouts
- Sewer hose storage compartment
Interior
- Cable TV hookup with RG6 Coax
- Rugged furniture designed and hand-crafted by Jayco
- Crank-up antenna for TV with signal booster
- Mini-blinds
- Overhead cabinetry is slanted (when possible)
- Swivel rockers (2) (29N)
- Vinyl flooring
- Westview Maple flat-panel doors and drawers
Kitchen
- 3-burner range with 9,000 BTU SuperBurner and piezo igniter
- 6 cu. ft. flush-mount refrigerator
- Sink cover/cutting board (1)
- Mixing high-rise faucet
- Range hood with light and exhaust fan
- Wallpaper border
- White, residential-style, double bowl kitchen sink with 1 cover
- Large window in kitchen
Bedroom
- Bi-fold privacy door (N/A 19W)
- TV shelf (select models)
- Roof vent
Bathroom
- 12V roof vent
- Towel holder
- Marine toilet
- Medicine cabinet with mirror
- Shower curtain
- Skylight in tub/shower (select models)
Safety
- Break-away switch
- Dual hitch safety chains
- Fire extinguisher
- Lock and dead bolt on entrance door
- LP gas leak detector
- Multiple egress windows
- Smoke detector
- Clear safety glass windows
See us for a complete list of standard features and options.
